Hein-Werner Automotive Long Chassis Service Jacks HW93662
Click Image to Enlarge



HW93662

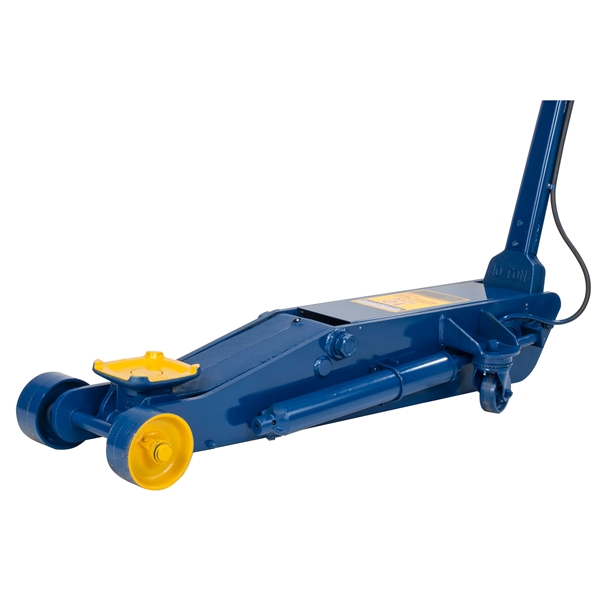

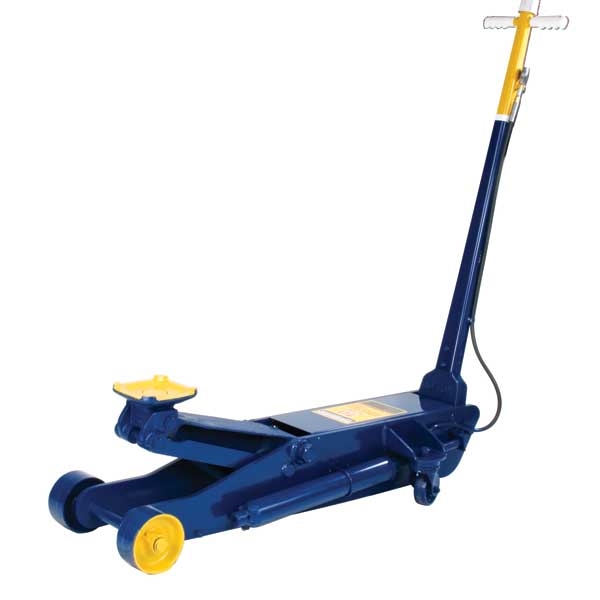

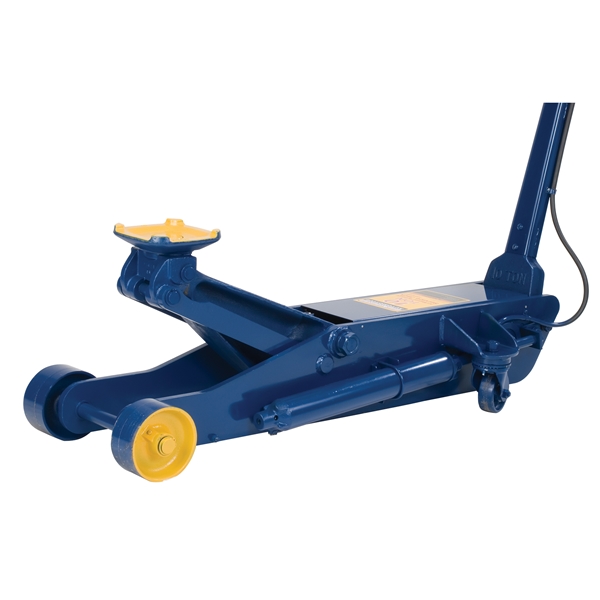

10 Ton Air/Manual Long Chassis Service Jack
Email this page HW93662 10 Ton Air/Manual Long Chassis Service JackPrint this page HW93662 10 Ton Air/Manual Long Chassis Service Jack
Features:
  • Lifting trucks, trailers, and buses by the axle, differential, or frame
  • Dual piston action provides speed to contact and power to lift
  • Long chassis for hard to reach points
  • Handle adjusts to three pumping positions
  • T handle with release knob for exact positioning of load
  • Sealed hydraulic unit keeps out grit, grime and moisture
  • Large full swivel saddle and ball bearing caster make positioning easy
  • Cast lift arm for heavy loads
  • Operates manually or with air
  • Patented “Speed Pak™” reduces handle pumping
  • Uses standard shop air 110-175 PSI pressure (140-175 PSI for rated load)
  • Made in U.S.A.
  • Capacity: 10 Ton
  • Min Height: 6 3/4"
  • Max Height: 25 1/2"
  • Chassis Length: 53 1/2"
  • Wheel to Wheel Width: 20 1/2"
  • Max Air Pressure: 140 PSI
  • Gross Weight: 435 lbs
